Arrowquip

View Gallery

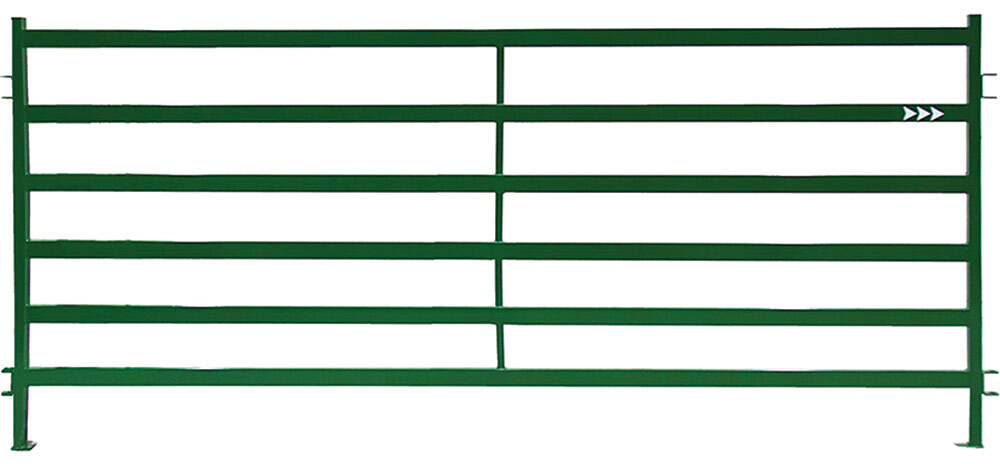

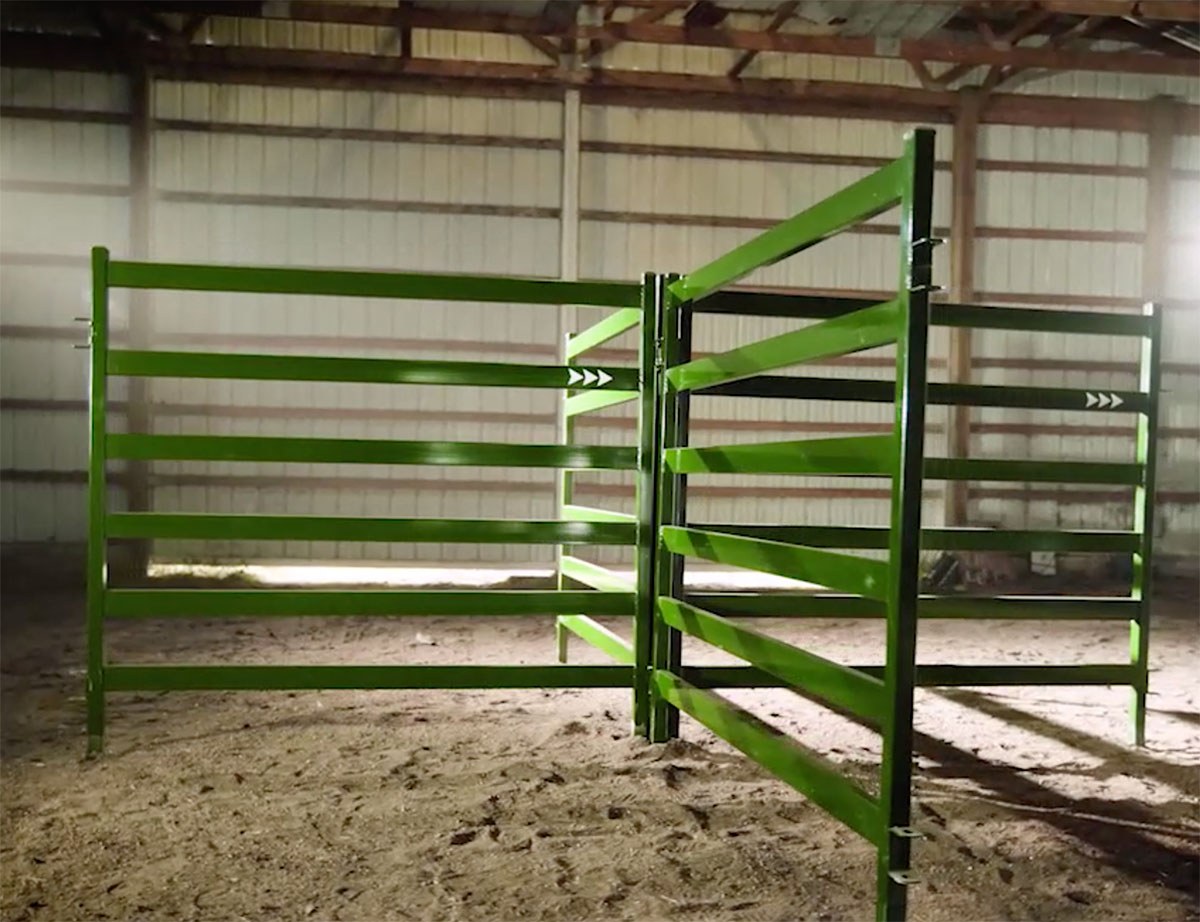

Arrowquip Heavy Duty Panels

  • Ideal for high-pressure holding and sorting areas of a handling system
  • Ideal for systems for cattle/breeds with a more excitable temperament
  • 1.5" x 3" rectangular tubing rails
  • 2" x 2" rectangular tubing posts
  • 12 ft and 14 ft panels feature heavy-duty, fully welded stays
Length: 4 ft 6 ft 8 ft 10 ft 12 ft 14 ft
Height: 72 in 72 in 72 in 72 in 72 in 72 in
Weight: 75 lbs 97 lbs 120 lbs 142 lbs 170 lbs 193 lbs
Warranty: Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime

View Gallery

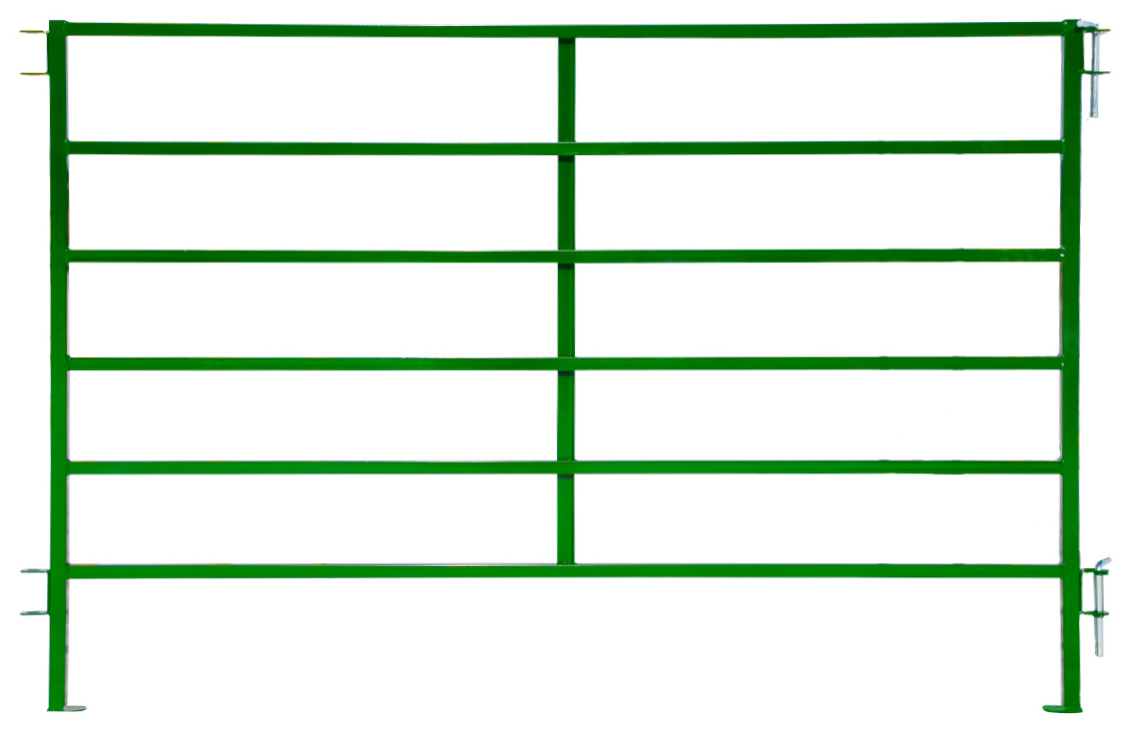

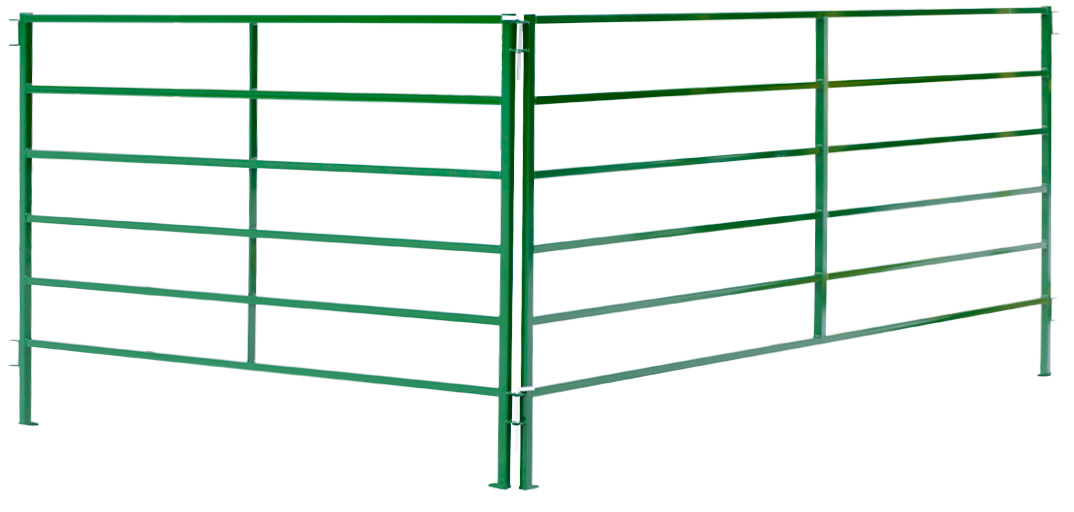

Arrowquip Light Duty Panels

  • Ideal for low-pressure holding and sorting areas of a handling system
  • Ideal for systems for cattle/breeds with a more docile temperament
  • 1.25” x 1.25” square tubing rails
  • 1.5” x 1.5” square tubing posts
  • Feature a one-piece continuous stay crafted with 1.5” angle iron
Length: 8 ft 10 ft 12 ft
Height: 64 in 64 in 64 in
Weight: 75 lbs 88 lbs 99 lbs
Warranty: 5 years 5 years 5 years
