Hydraulic Chute

View Gallery

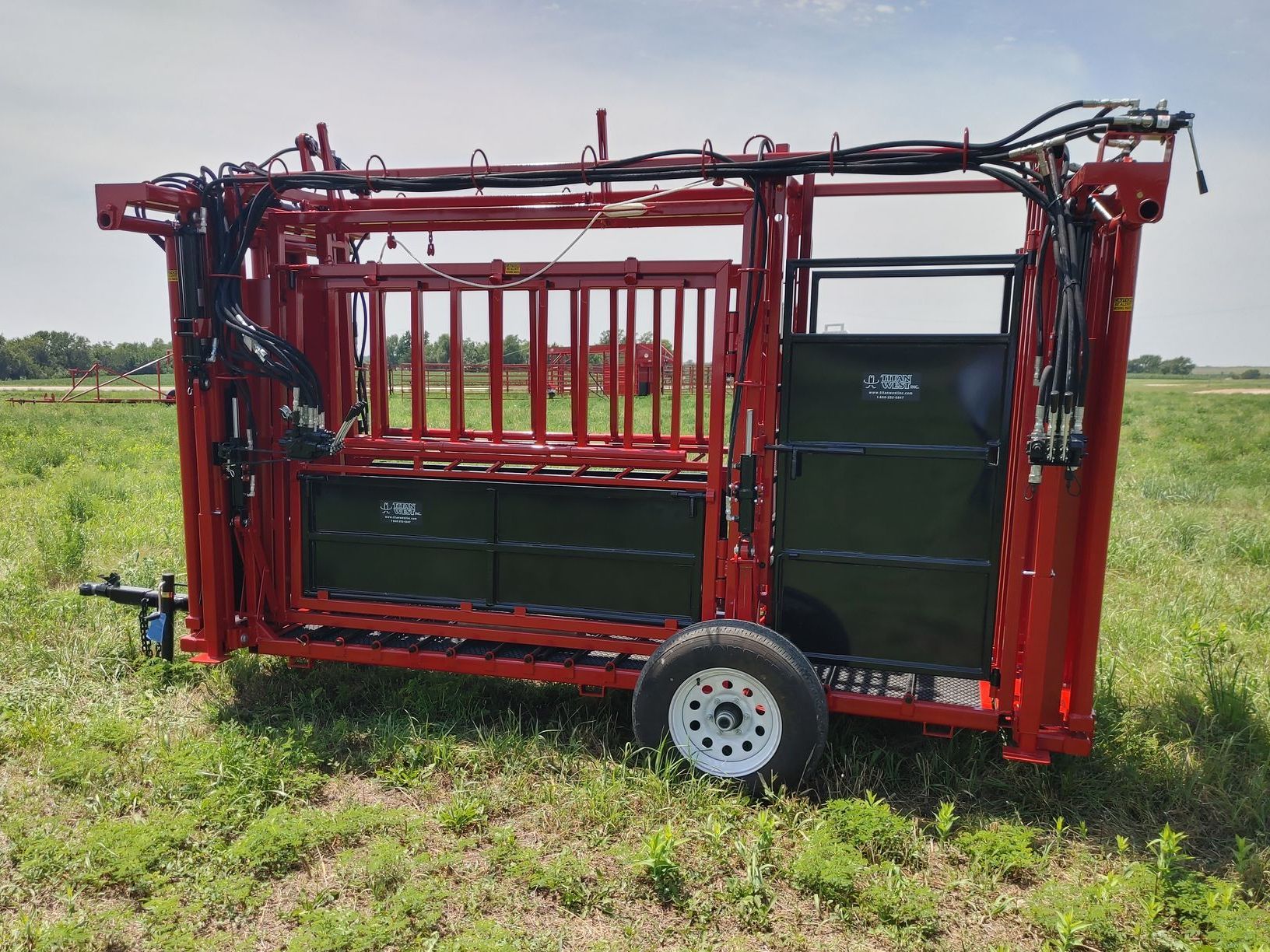

Cattleman Hydraulic Chute

The frame is of 2” square high strength steel tubing; with all stress points reinforced for added strength and durability. A patented neck extender, also featured in Titan West’s Hydraulic Headgate, gently immobilizes an animals head to make quality vaccinations, implants, etc. The Combo model offers the same features of the Standard model with the exception of an additional palpation cage, accessible from both sides.

  • Double action squeeze from both sides
  • A "quiet package" that includes a Rumber floor for stable and sure footing for animals entering the chute.
  • Unique crowd ahead bar encourages animals to continue moving through the chute
  • A portable attachment for easy transport
  • Scale systems are also an option for the Standard or Combo models

View Gallery

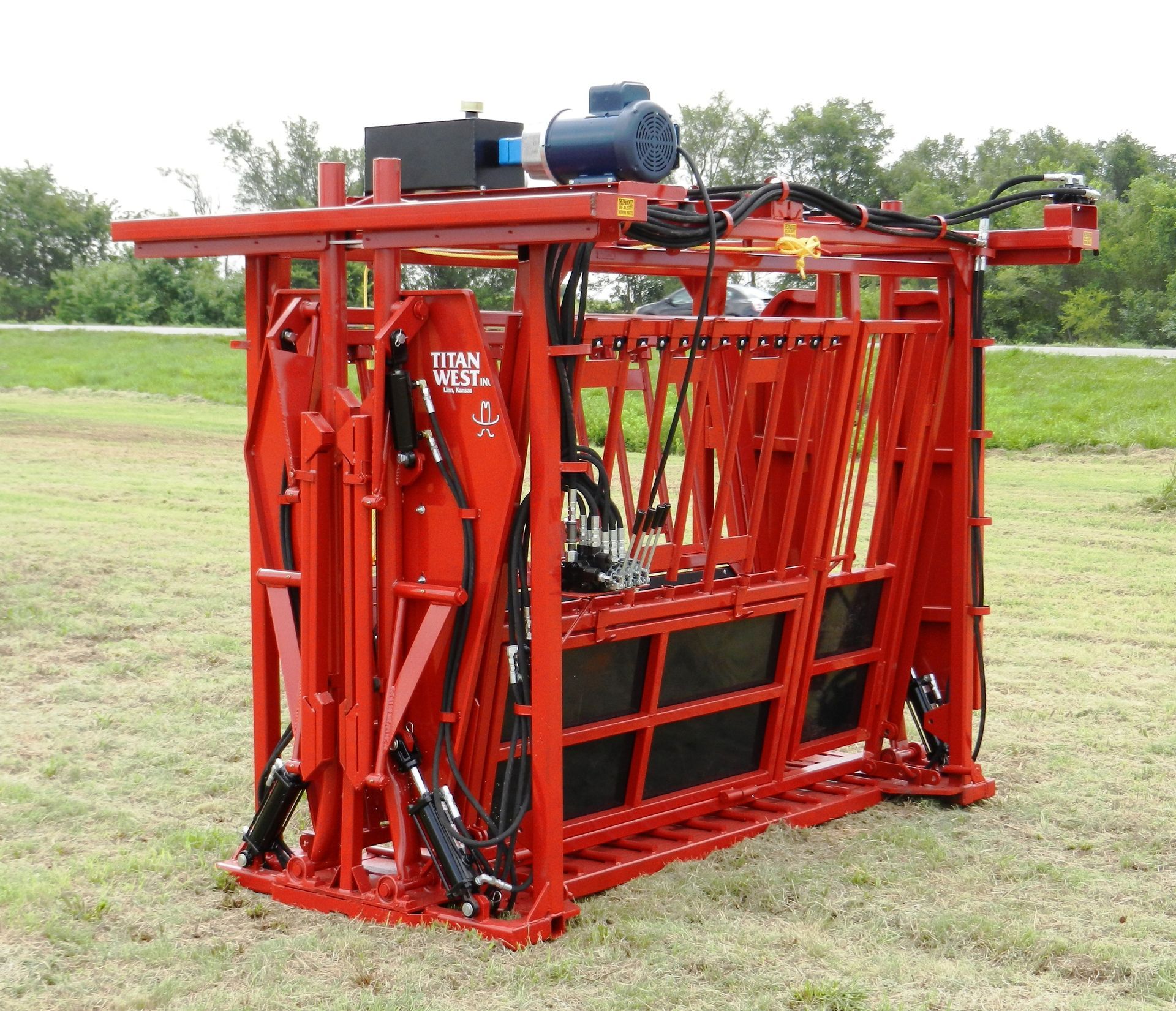

Cattle Care Hydraulic Chute

  • Designed with safety of animal & operator in mind
  • Gently holds the head still while you work
  • 1/4"" Rumber footdoors reduce noise & last longer
  • Easy-open side panels configurable to your needs
  • Neck extender has own pressure controls
  • Ball bearing pivot points at bottom of gates
  • Rubber inserts at pivot & slam points at side windows
  • Chutes tested and proven by feedlots for over 20 years
  • All chutes can be made portable

Can add:

  • Palpation Doors, Hydraulic Adjustable Bottom & Scales available
  • Optional Bull Package (12” longer) available
  • Pivot Swing Arm Controls

View Gallery

EZ Care Hydraulic Chute

  • Commercial Grade Construction for use in the largest Feedlots, Cow/Calf herds, Veterinary Clinics and Auction Barns
  • Horizontal Headgate and Rear Tailgate
  • Parallel Center Squeeze
  • 220V (single phase) Electric Motor and Vane Pump
  • Hydraulic Neck Extender has an individual Pressure Relief Valve
  • Heavy Duty Poly Liner on Slide Tubes for Headgate, Center Squeeze and Rear Gate
  • No Connections to the Floor at any point for the Headgate, Center Squeeze and Rear Tailgate
  • Animat Max Grip Floor with removable Cleats for greater Traction
  • Easily Removable Chest Rest
  • Rubber Shoulder Cushions
  • Headgate Spring Loaded at the bottom for additional Shoulder Cushion

Can Add:

  • Palpation Door
  • Bull Package (12” longer and includes 2 Palpation Doors)
  • Side Escape
  • Rear Door Remote Valve
  • Swing Arm for Hydraulic Controls
  • Grated Floor
  • Window Louvres
  • Portable Attachment
  • Gasoline Power Supply
  • Tractor Hook-up
  • Scales
