Hydraulic Chute

Hydraulic Squeeze Chute

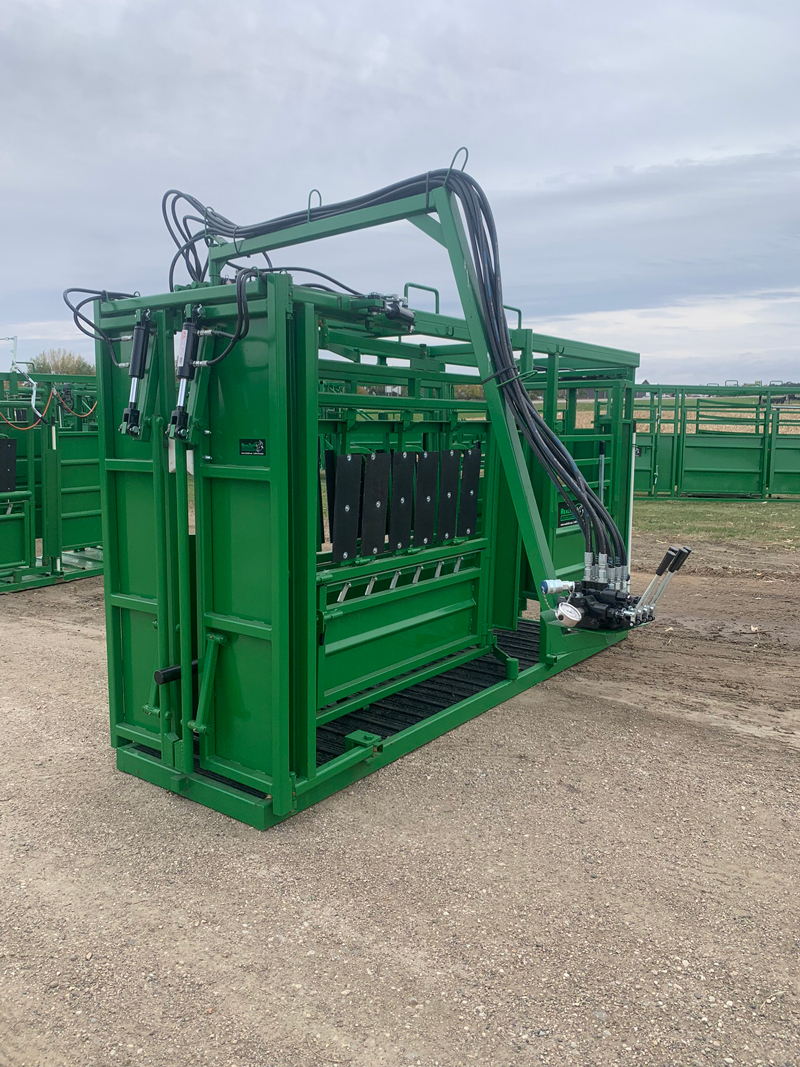

Features grease zerks on every moving part, ensuring smooth operation and longevity. The curtain-style head gate opens up completely to accommodate every animal, from horned cattle to newborn calves. On either side, the doors open to allow for multiple exit points.

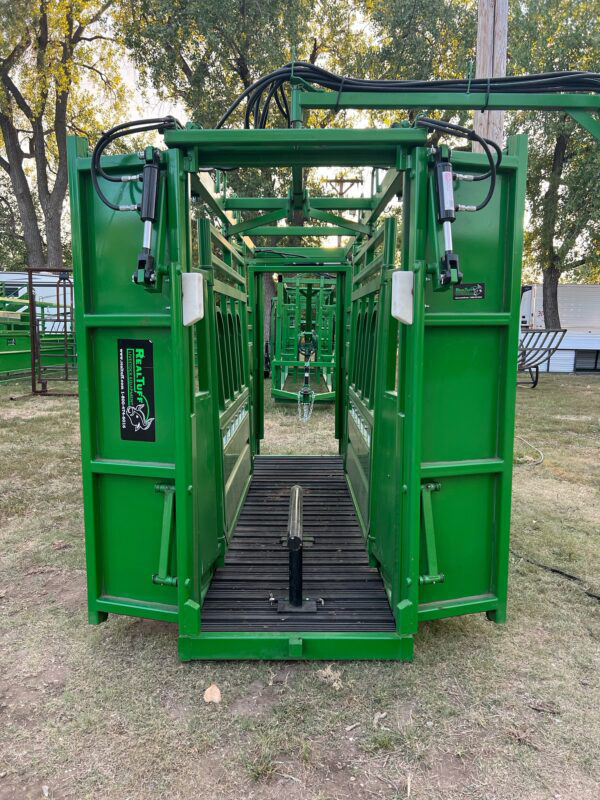

Both sides have a bottom panel that opens, providing convenient access for tasks such as nursing calves or semen testing your bulls. The portable hydraulic cattle chute features a slick door at the back, working seamlessly to prevent the second animal from entering the chute.

If relocation is necessary, the chute can be effortlessly lifted using the 4 hooks positioned on top. Take advantage of the sizable window in the neck gate for precise neck shots!

• The head gate closes down to 6” and opens to 35”. To completely to accommodate every animal from horned cattle to newborn calves.
• The Neck Extender extends from 9” to 11”
• The Squeeze is a full parallel motion expanding from 11” to 30”
• Slick Door is a Bi-Fold Door at the back of the squeeze chute that closes down to 4.5” and opens to 27”
