Portable Corral Systems

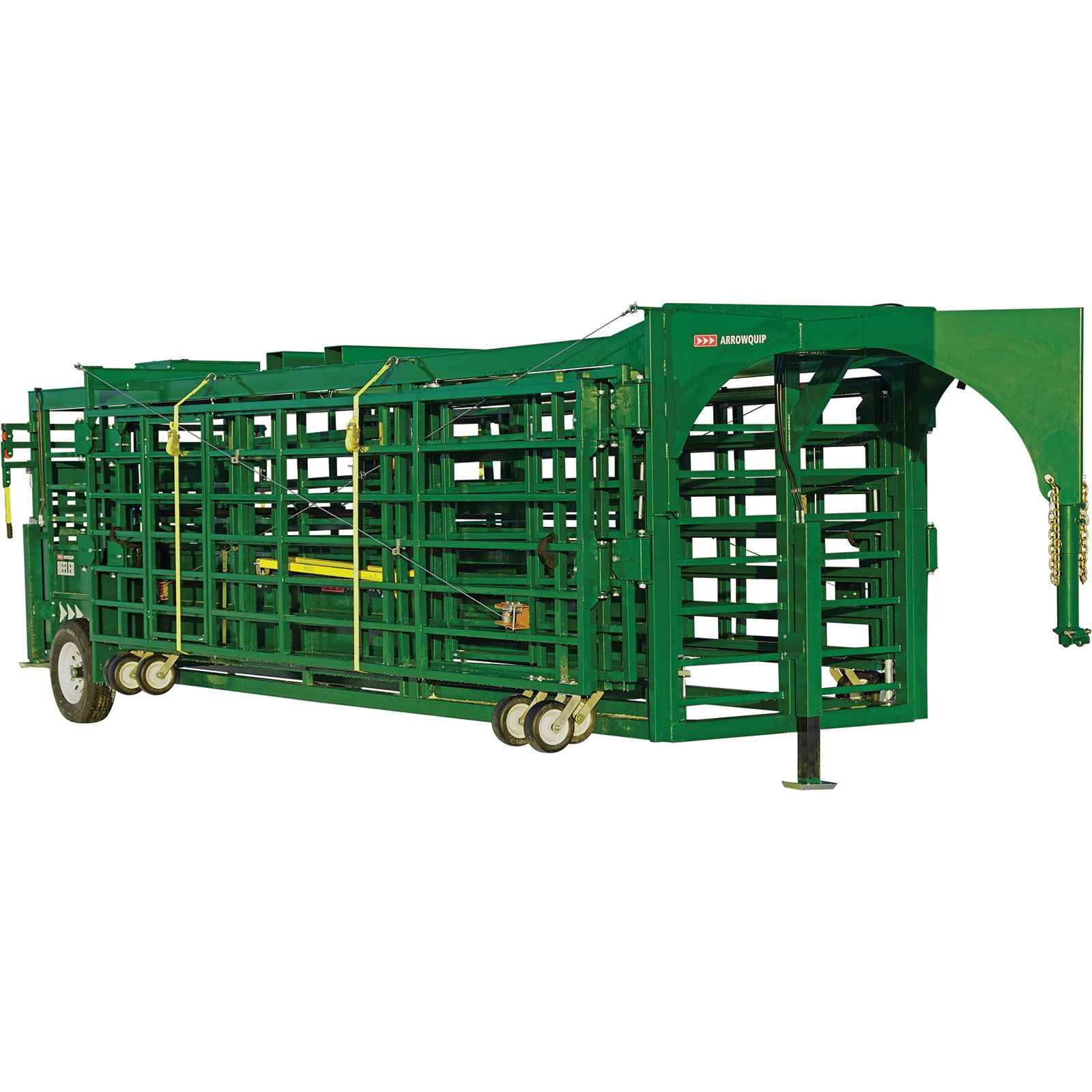

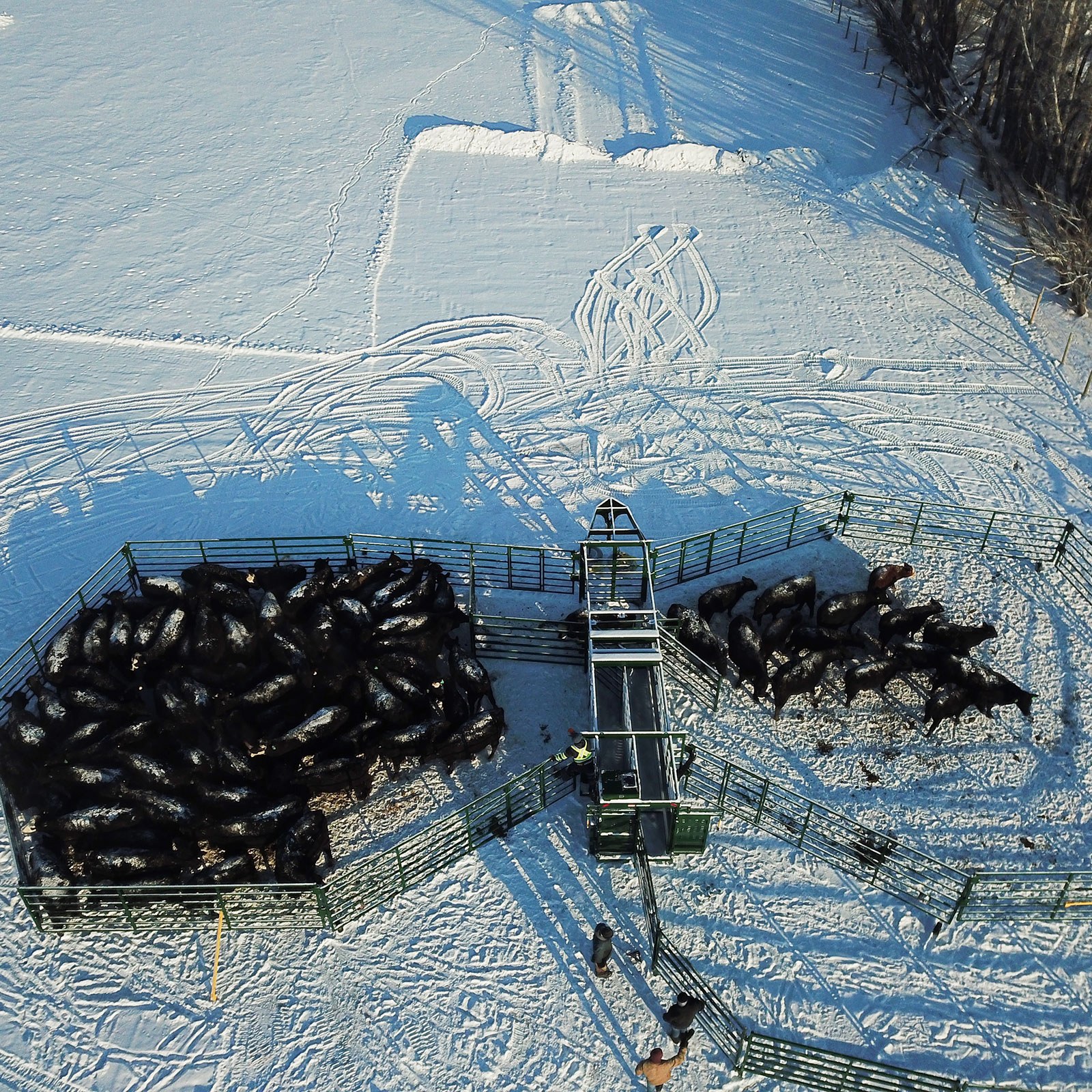

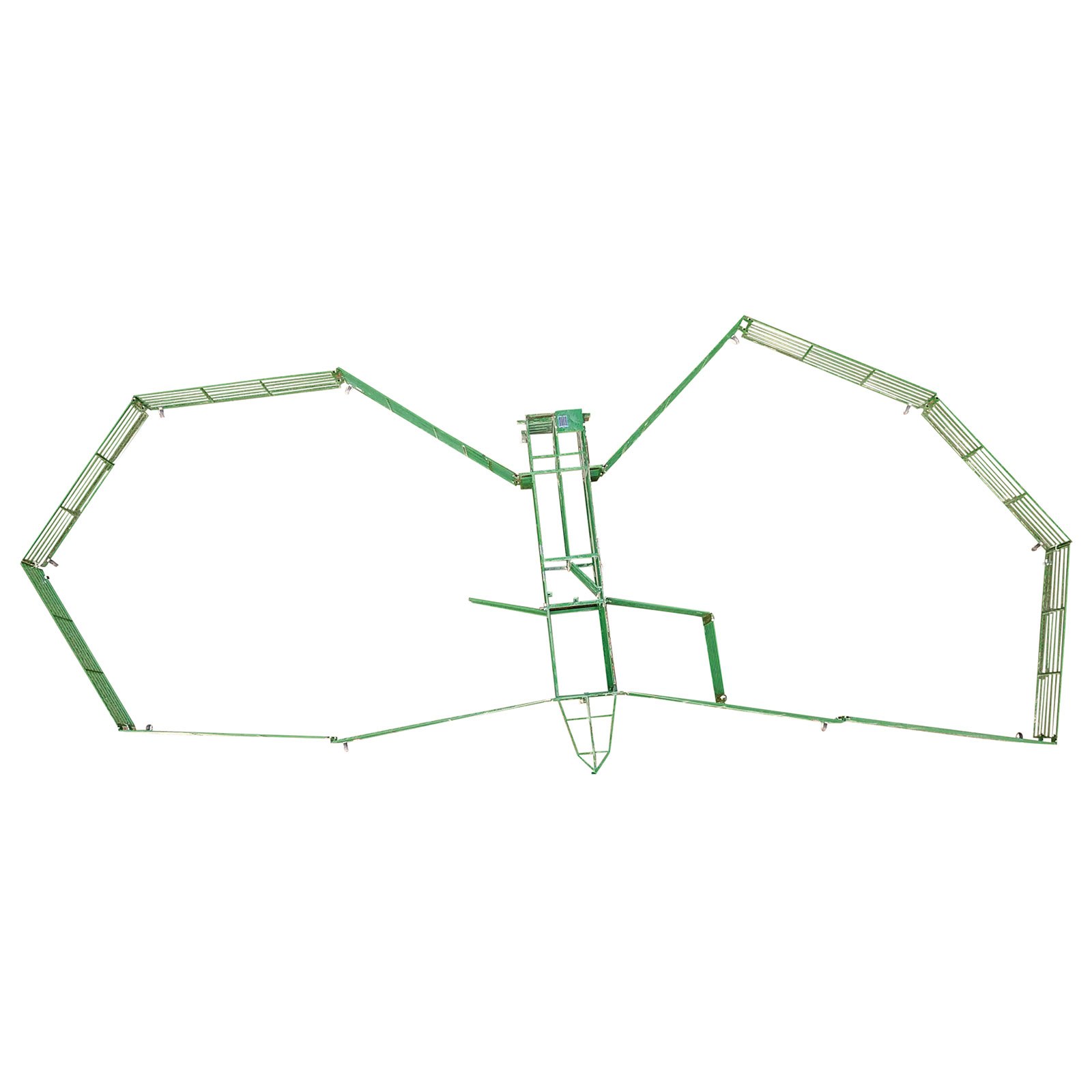

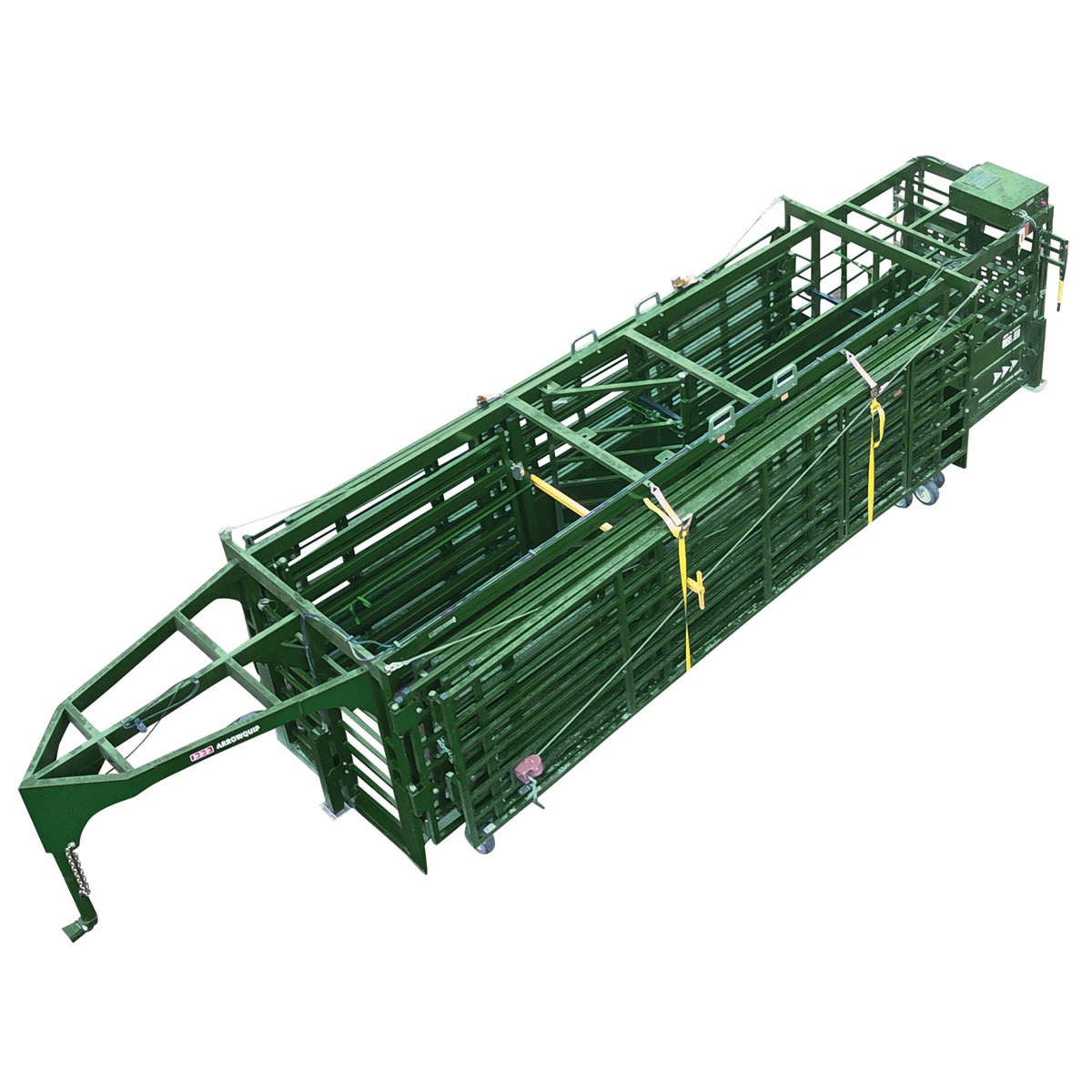

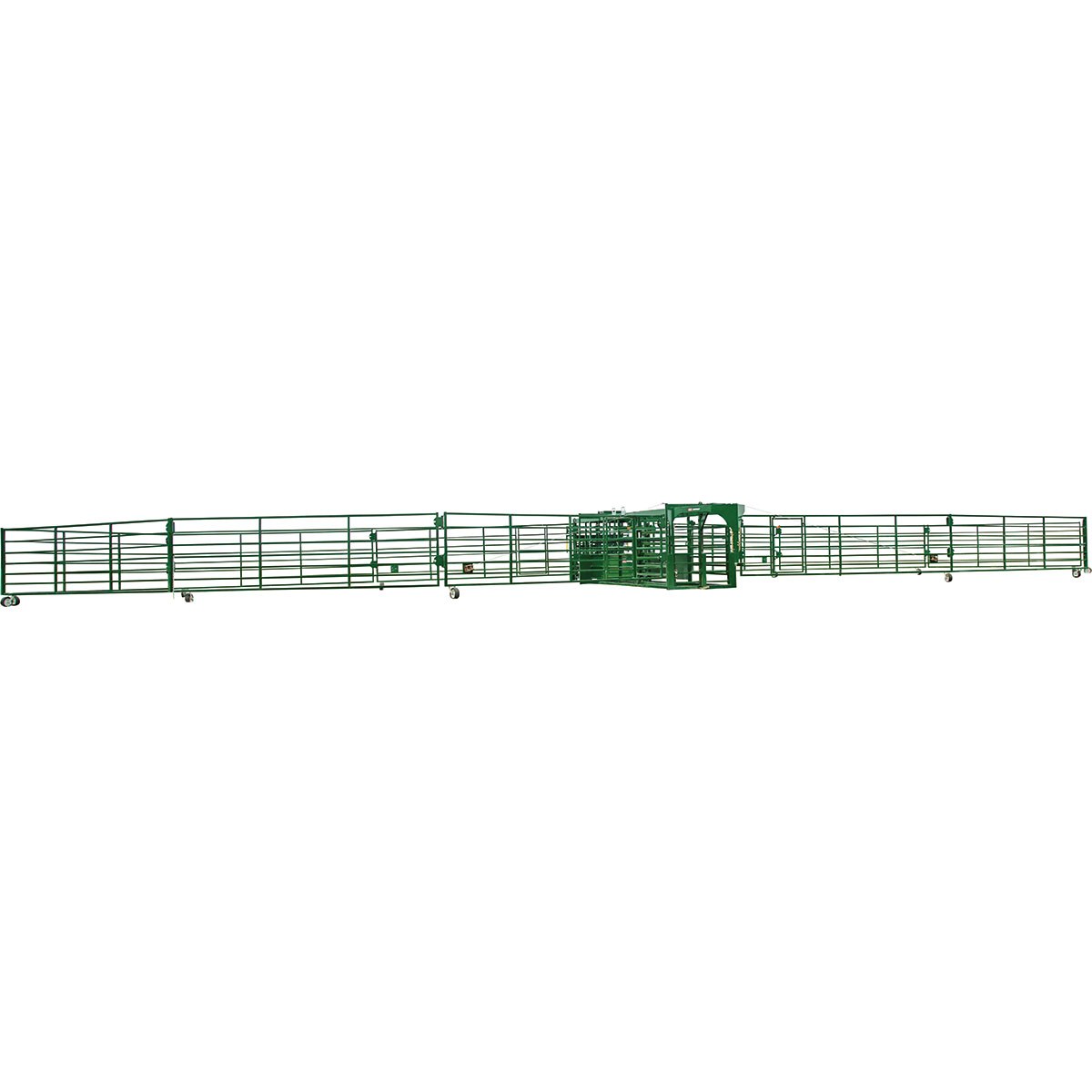

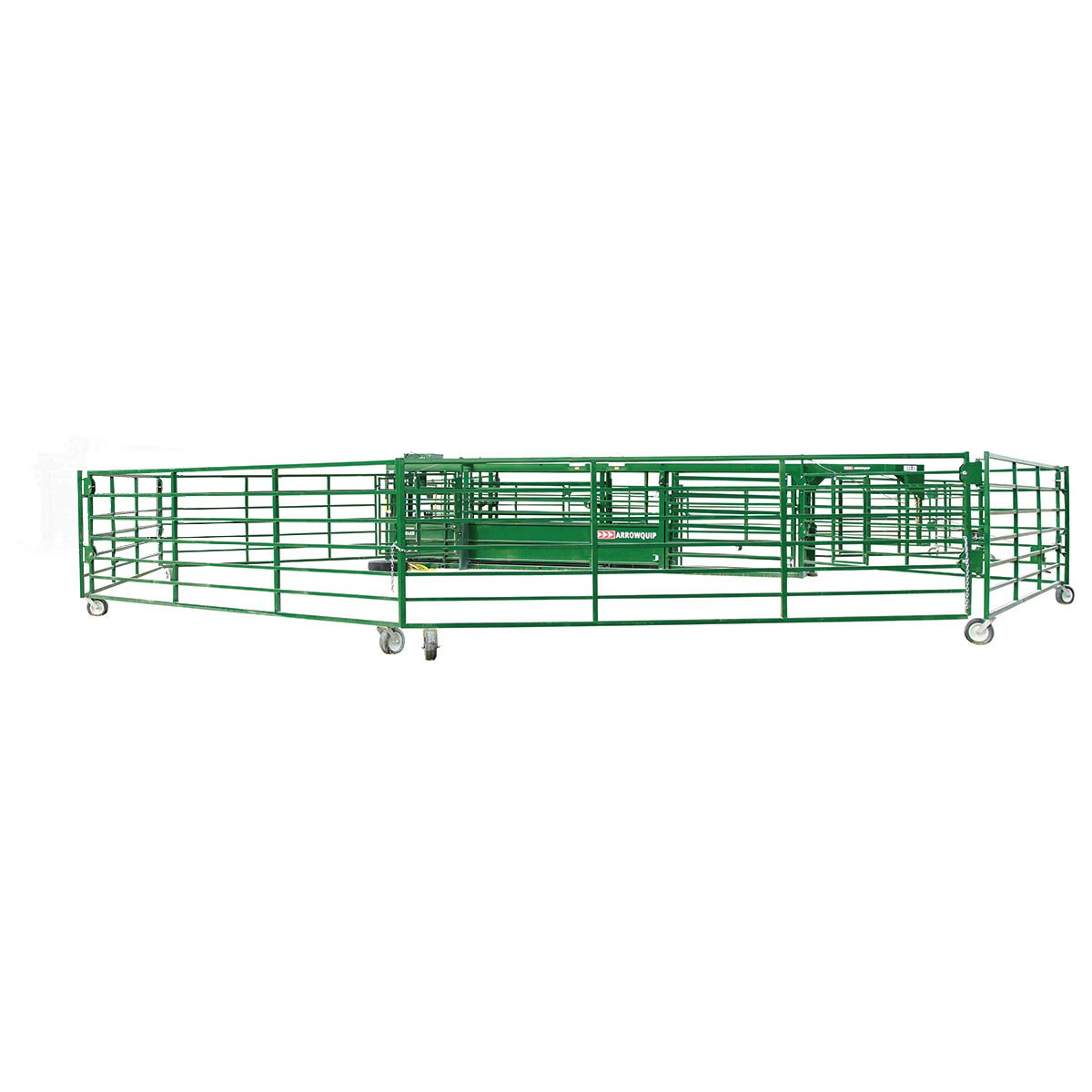

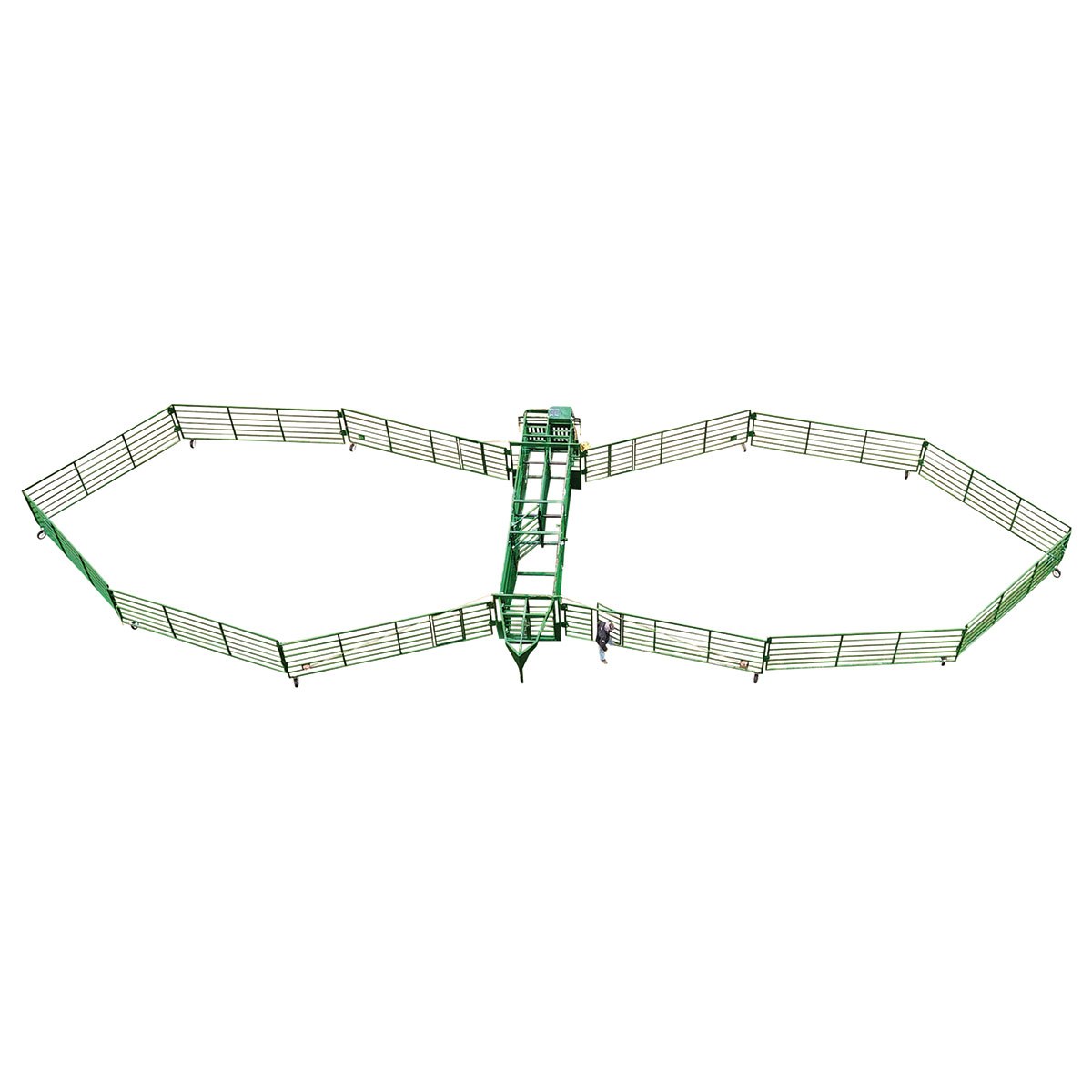

HEELER

When designing the Heeler, the Arrowquip Innovations Team kept optimal cattle flow at the forefront of the design, creating a portable corral that provides ranchers with a simple, reliable system. Featuring an exclusive 18' double alley that quickly converts to a single alley and cattle-free zone with a locking swing gate, and four spring-loaded man gates on the outer panels for strategic access to the two pens with approximately 2,620 square feet of space, you can work at a new level of efficiency.

With room to carry extra panels and an added hitch for towing, you can haul your entire system in one go. The Heeler is a portable corral system unlike any other.

The patented hydraulic jacking system that lifts and lowers the corral with ease, and swing-out panels on airless tires with a winch system, setup and tear down are complete in a matter of minutes.

The alley features a locking swing gate to turn the double alley into a single alley with a cattle-free zone, keeping you safely separated from cattle while allowing you to work with them using their flight zones.

• 5 Year Warranty
• Towing Dimensions: 102" Wide x 106" High x 408" Long (With wheels & hitch.)
• Exclusive 18' double alley
• Two pens totaling approximately 2,620 square feet of working space
• Carry extra panels with convenient holder in double alley
• Spring-loaded man gates placed strategically on the panels closest to the core of the portable corral
• Added fifth wheel hitch clearance for safe and easy pass-through
• Lights included standard to haul at any time of day or night
• Added hitch at the back to tow chute or loading ramp
• Standard Bud Box provides added control of cattle flow
• Two integrated rolling doors, at the end of the double alley
• Ability to control cattle flow and create cattle-free zone and single alley with locking swing gate
• Frame constructed with 4" x 4" beams and 2" x 6" tubing
• Swing-out panels on airless tires with a winch system
• Panels built with 1.5" x 1.5" .100"w steel tubing
• Each panel features two interlocking stays for added strength
• Panels hinge off the frame in sets of three, six on each side, and easily fold for transport

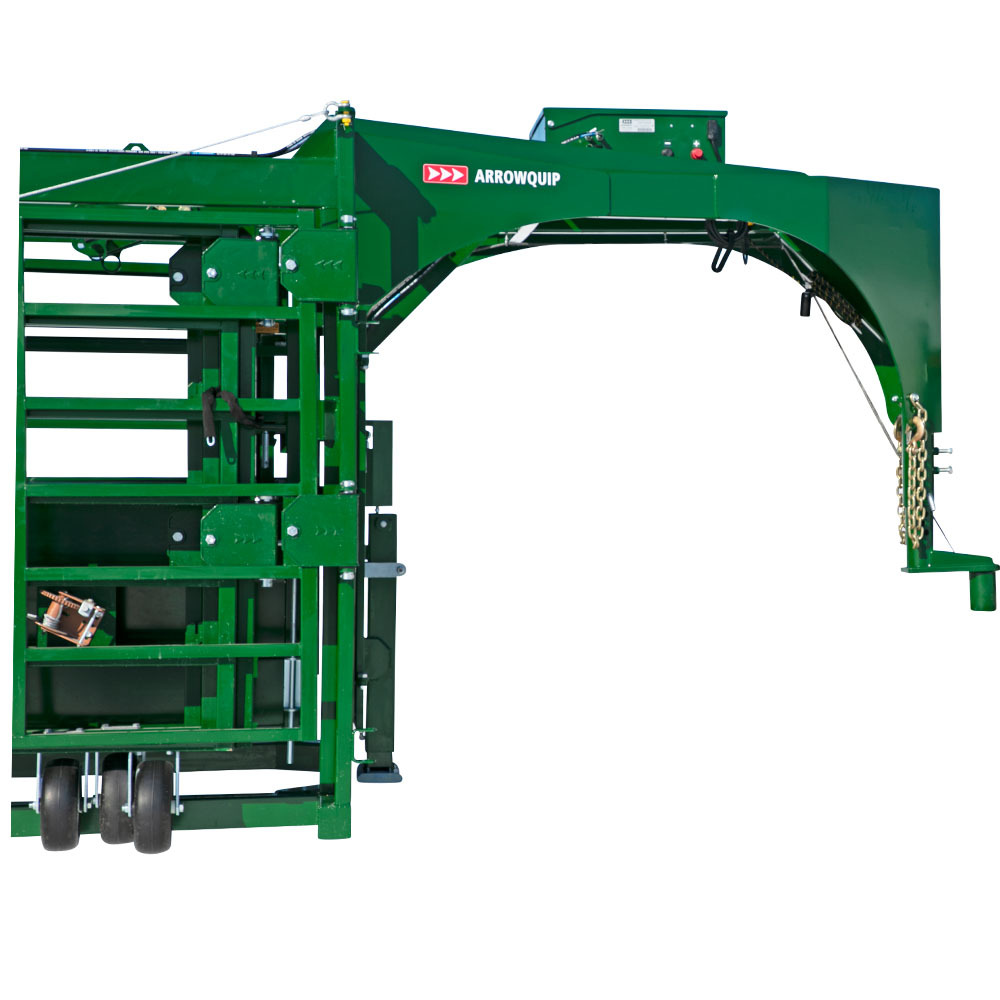

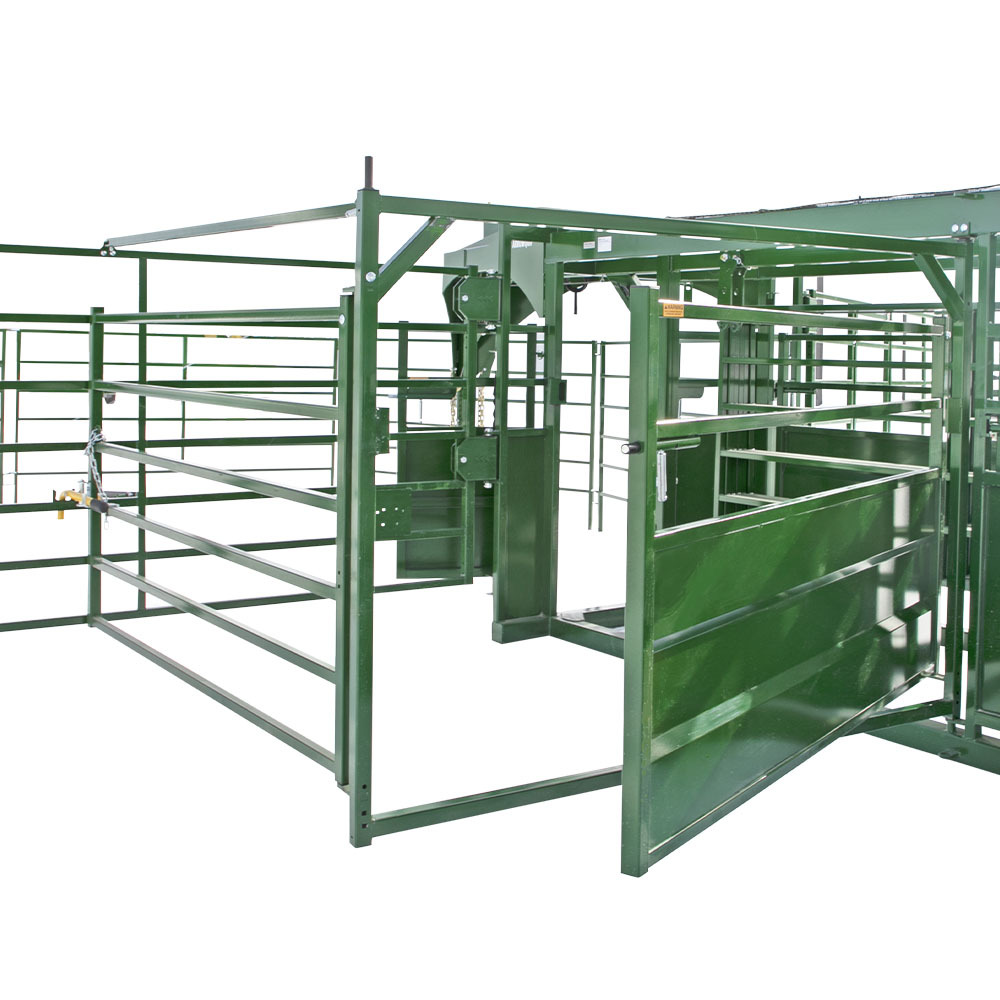

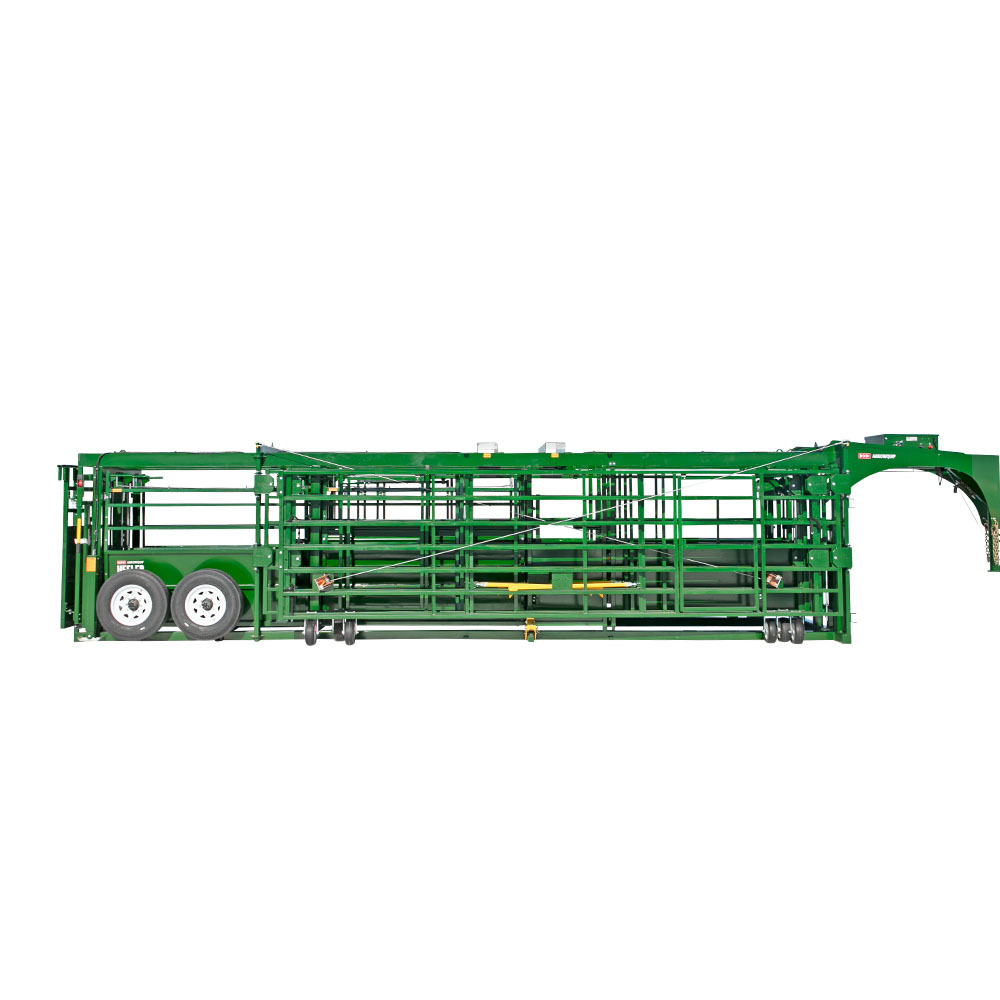

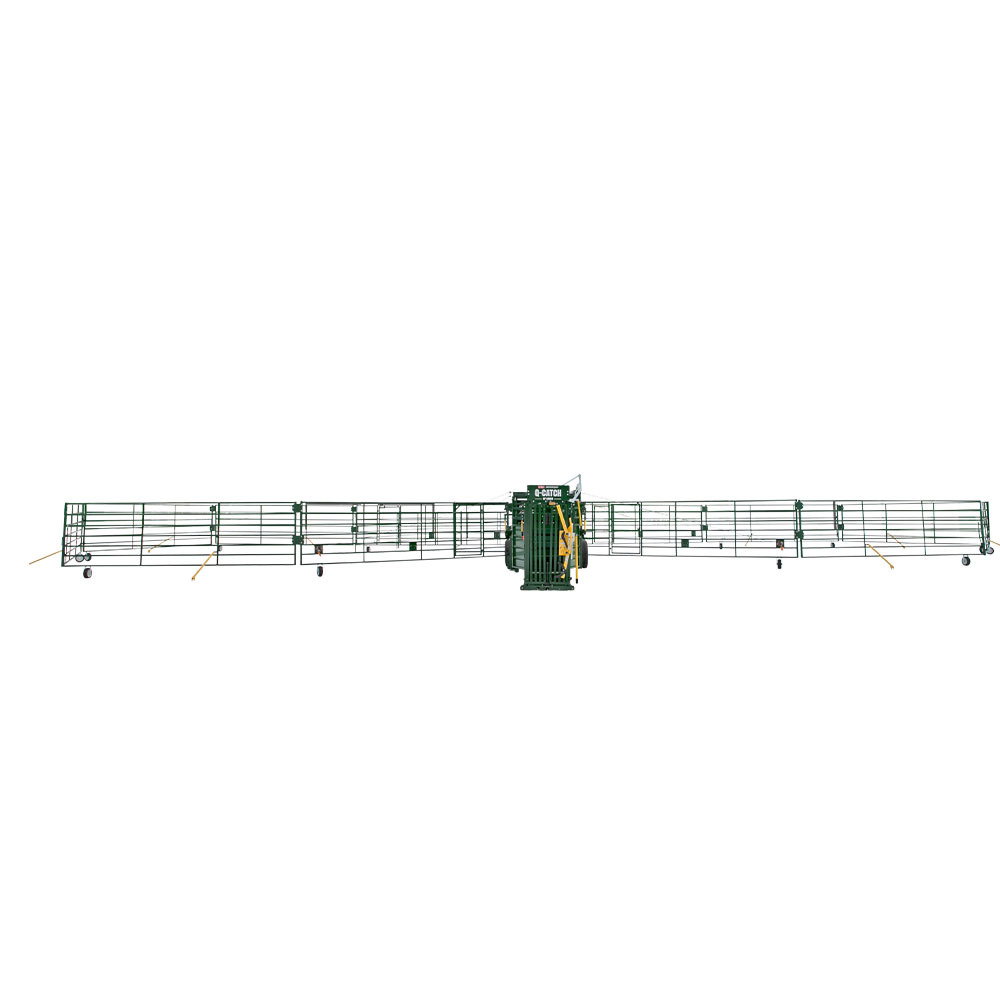

HEELER C2

Heeler C2 takes cattle flow, safety, and functionality with a portable corral to a whole new level.

With hydraulic jacks, swing-out corral panels with a winch system on airless tires, and a convenient fold-out Bud Box for optimal flow, this corral is a true game-changer. Uniquely flexible Double Easy Flow Adjustable Alleys can convert to a single alley and cattle-free zone with locking swing gates, and optional cattle alley stops prevent your cattle from backing out.

Paired with the ability to carry extra panels, allowing for multiple pen configurations, and a Double Alley Merge for seamless cattle flow from alley to cattle chute, revolutionize your ranching experience with the Heeler C2. Simplify your cattle working experience without compromising reliability.

The alley also features locking swing gates to turn the double alley into a single alley and cattle-free zone, keeping you safely separated from cattle while allowing you to work with them using their flight zones.

A patented hydraulic jacking system that lifts and lowers the corral with ease, and swing-out corral panels on airless tires with an added winch system, setup and tear down are complete in a matter of minutes.

• 5-Year Warranty
• Towing Dimensions: 100” Wide x 108” High x 430” Long (with wheels and hitch)
• Added fifth-wheel hitch clearance for a safe and easy pass through
• Frame constructed with 4” x 4” beams and 2” x 6” tubing

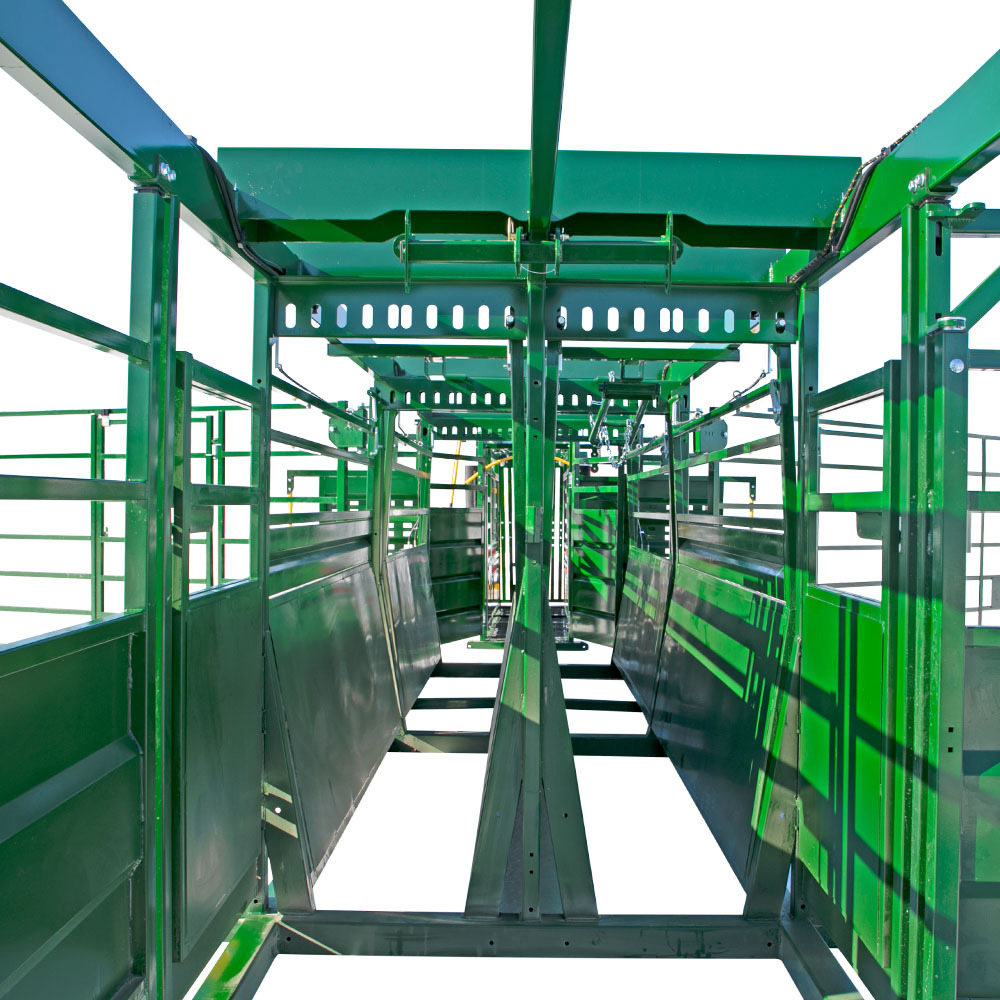

• Exclusive Double Easy Flow Adjustable Alley
• Optional Cattle Alley Stops

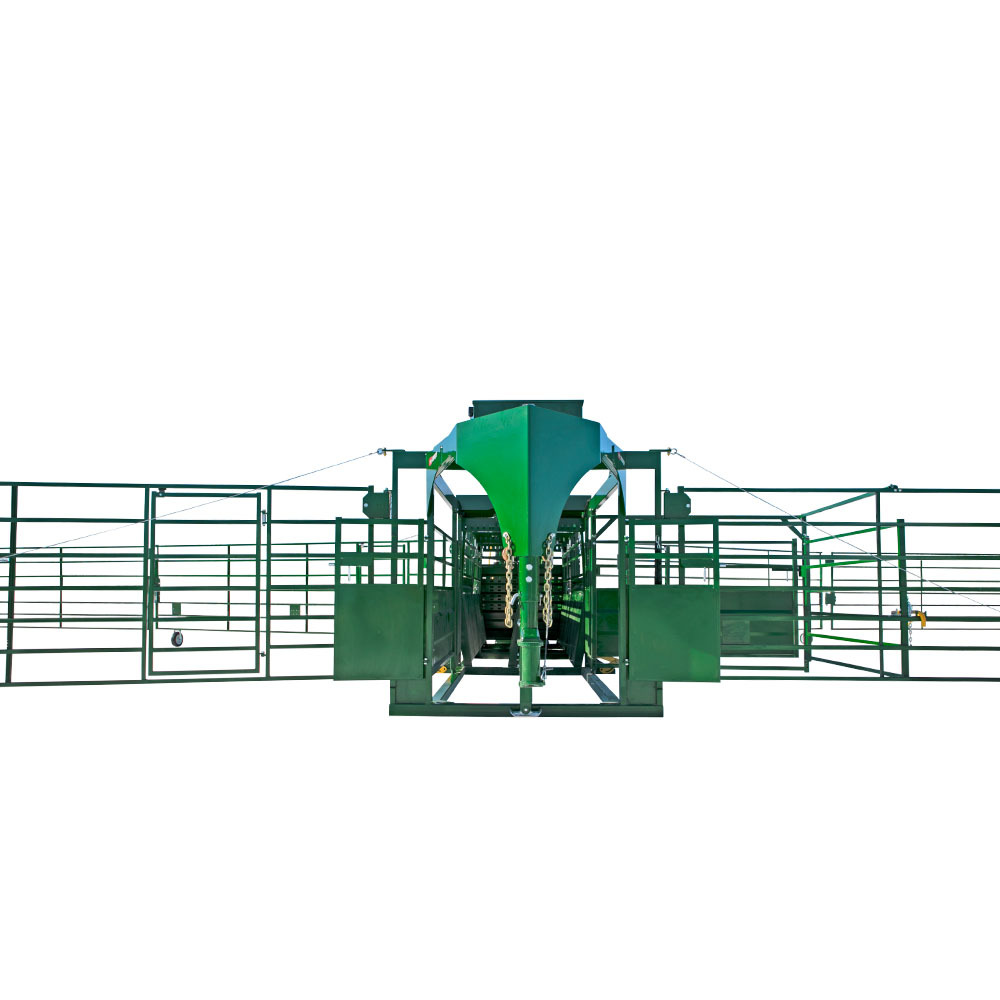

• Unique Double Alley Merge
• Standard fold-out Bud Box provides added control of cattle flow
• Carry extra panels with convenient holders in the double alley
• Multiple configurations with added panel clips
• Ability to create a cattle-free zone and single alley with locking swing gates
• Front access doors for more accessibility, additional sorting options
• Spring-loaded man gates placed strategically on the panels closest to the core of the corral
• Swing-out panels on airless tires with a winch system
• Panels built with 1.5” x 1.5” .100”w steel tubing
• Each panel features two interlocking stays for added strength
• Panels hinge off the frame in sets of three, six on each side, and easily fold for transport
• Added panel shelf to securely hold panels during transport
• Added hitch at the back to tow a cattle chute or loading ramp
• Lights included standard to haul at any time of day or night

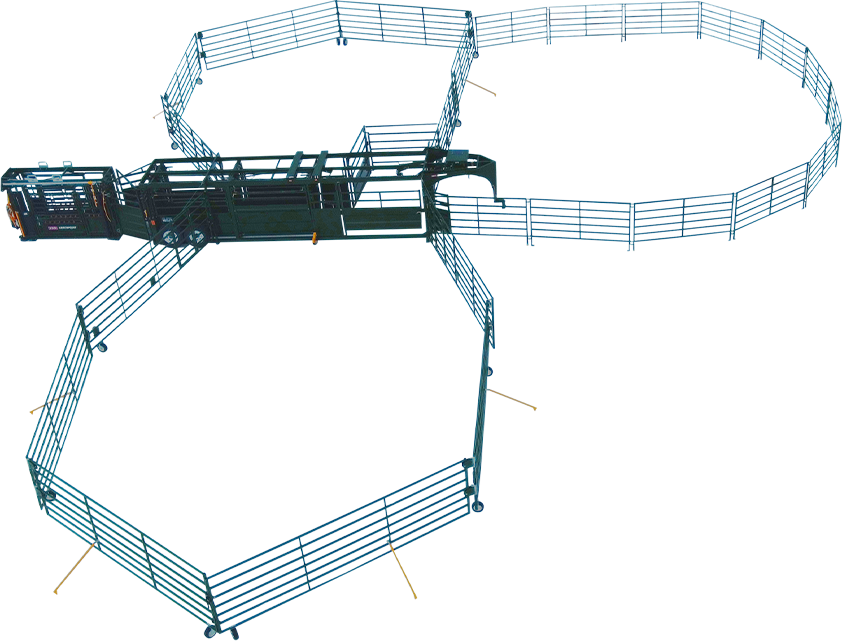

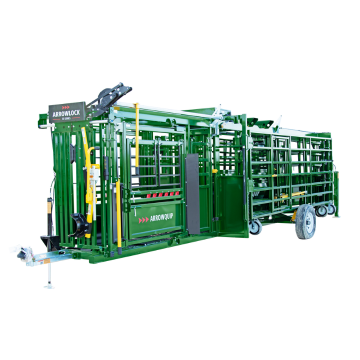

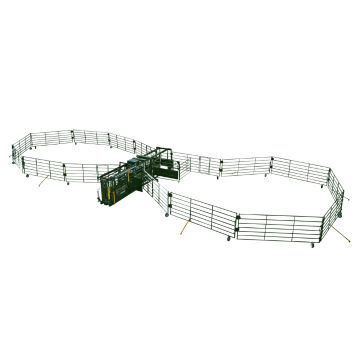

HEELER 75C

Built for durability and engineered with ranchers in mind, this portable corral, chute, and alley is your all-in-one solution for a more efficient solution whether you’re at home, on the ranch, or out at pasture. From the pens to the alleyway and through the cattle chute, this portable corral is designed to make your operation easier. Featuring hydraulic jacks, a fold-out BudBox, swing-out corral panels on airless tires, an 8’ Easy Flow Adjustable Cattle Alley Section, and an Arrowlock 75 Series at the front of it all, you can be sure the job gets done right every single time.

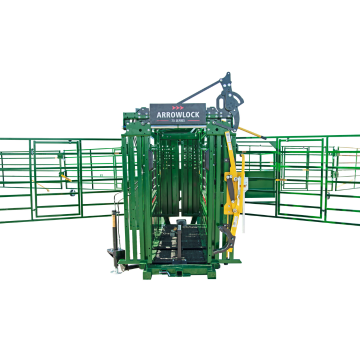

With advanced features, including multiple access points and user-friendly operating handles, you’re guaranteed a true one-person operation. The Arrowlock 75 Series squeeze chute also features a ratchet locking style cattle head gate with strength that’s comparable to a hydraulic, so you’re promised a strong hold every time and a guarantee that your cattle will never back out.

Designed to maximize efficiency with a fold-out BudBox, Rolling Alley Gates, and 3E technology that works with cattle behavior, you now have complete control of your cattle’s movements as they flow seamlessly from pens, through the alley, and into the cattle chute.

The hydraulic jacks and swing-out panels on airless tires paired with a winch system, you can set up and take down this unit in minutes, saving you precious time and energy. Purchasing the 75C you have the ability to adjust your two sets of Easy Flow Cattle Alleys from 18-30” to suit your needs. Featuring two removable panels, you can also control what cattle see, which will greatly enhance flow.

• 5-Year Warranty
• 8’ Easy Flow Alley section adjustable from 31.5” to 21"
• Two pens totaling approximately 2,646 square feet of working space
• 4 spring-loaded man gates placed strategically along the panels for access near the Bud Box and to easily move from pen to pen
• Removable alley blinder panels to control cattle’s sight lines
• Lights included standard to haul at any time of day or night
• Fold-out Bud Box provides added control of cattle flow
• Two integrated rolling doors at each end of the alley
• Frame constructed with 4” x 4” beams and 2” x 6” tubing
• Swing out panels on airless tires with a winch system
• Panels built with 1.5” x 1.5” .100”w steel tubing
• Panels hinge off the frame in sets of four, eight on each side, and easily fold for transport
• Barred head gate design uses light to draw cattle into the chute
• Head Gate operation handle can be used anywhere alongside the chute
• Curtain-style Head Gate opens a full 29.5”
• Squeeze on the cattle chute ranges from 31.5” fully open to 7.75” fully closed
• Rump fingers ensure additional safety no matter the size of the animal
• Swing-out top and bottom access doors can be used individually or together as an emergency exit
• Removable side access doors that can be configured in a variety of positions
• Top to bottom needle access for quick injections
