Loading Chute

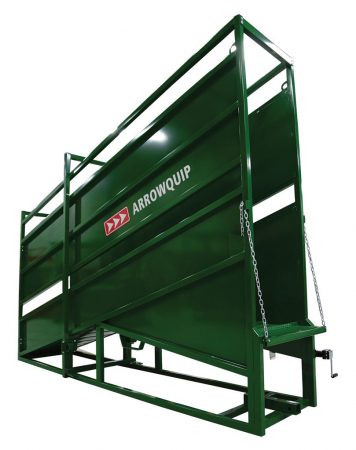

STATIONARY LOADING CHUTE
The 12' Loading Ramp features adjustable height that ranges from 12" to 51", allowing it to connect seamlessly with a semi-truck or cattle trailer of any height. Fully sheeted sides reduce stress and the likelihood of livestock injury, while the 6" vision slot allows handlers to assist in the loading process. The rib-checkered floor plate provides exceptional traction, giving cattle confidence as they transition from chute to trailer.
- 12' loading ramp
- Fully sheeted sides with 6" vision slot
- Adjustable height ranges from 12" to 51"
- Rib-checkered floor plate
- Heavy-duty construction
Can be purchase with Vet Cage, offers an ideal option for operations with a system that requires a pass-through, as it allows you to move from one side of your system to the other with ease.
| Product | Weight | Dimensions |
|---|---|---|
| 12 ft Stationary | 1503 lbs. | 43.2" Wide x 119" High x 151.4" Long |
| 12 ft Stationary with Vet Cage | 1797 lbs. | 43.2" Wide x 119" High x 190.6" Long |
PORTABLE LOADING CHUTE
The 12' Loading Ramp features adjustable height that ranges from 12" to 51", allowing it to connect seamlessly with a semi-truck or cattle trailer of any height. Fully sheeted sides reduce stress and the likelihood of livestock injury, while the 6" vision slot allows handlers to assist in the loading process. The rib-checkered floor plate provides exceptional traction, giving cattle confidence as they transition from chute to trailer.
- 12' loading ramp
- Fully sheeted sides with 6" vision slot
- Adjustable height ranges from 12" to 51"
- Rib-checkered floor plate
- Heavy-duty construction
Can be purchase with Vet Cage, offers an ideal option for operations with a system that requires a pass-through, as it allows you to move from one side of your system to the other with ease.
| Product | Weight | Dimensions | Towing Dimensions |
|---|---|---|---|
| 12 ft Portable | 1881 lbs. | 42.4-75.1" Wide (With Wheels) x 119" High x 151.4" Long | 79.4" Wide (With Wheels) x 132" High x 195.2" Long |
| 12 ft Portable with Vet Cage | 2176 lbs. | 42.4-75.1" Wide (With Wheels) x 119" High x 190.6" Long | 79.4" Wide (With Wheels) x 132" High x 234.3" Long |
