R&C Livestock Equipment

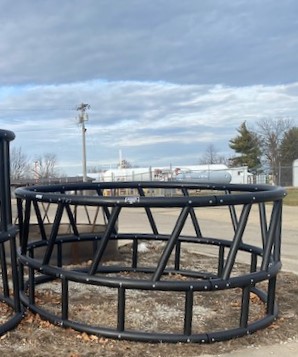

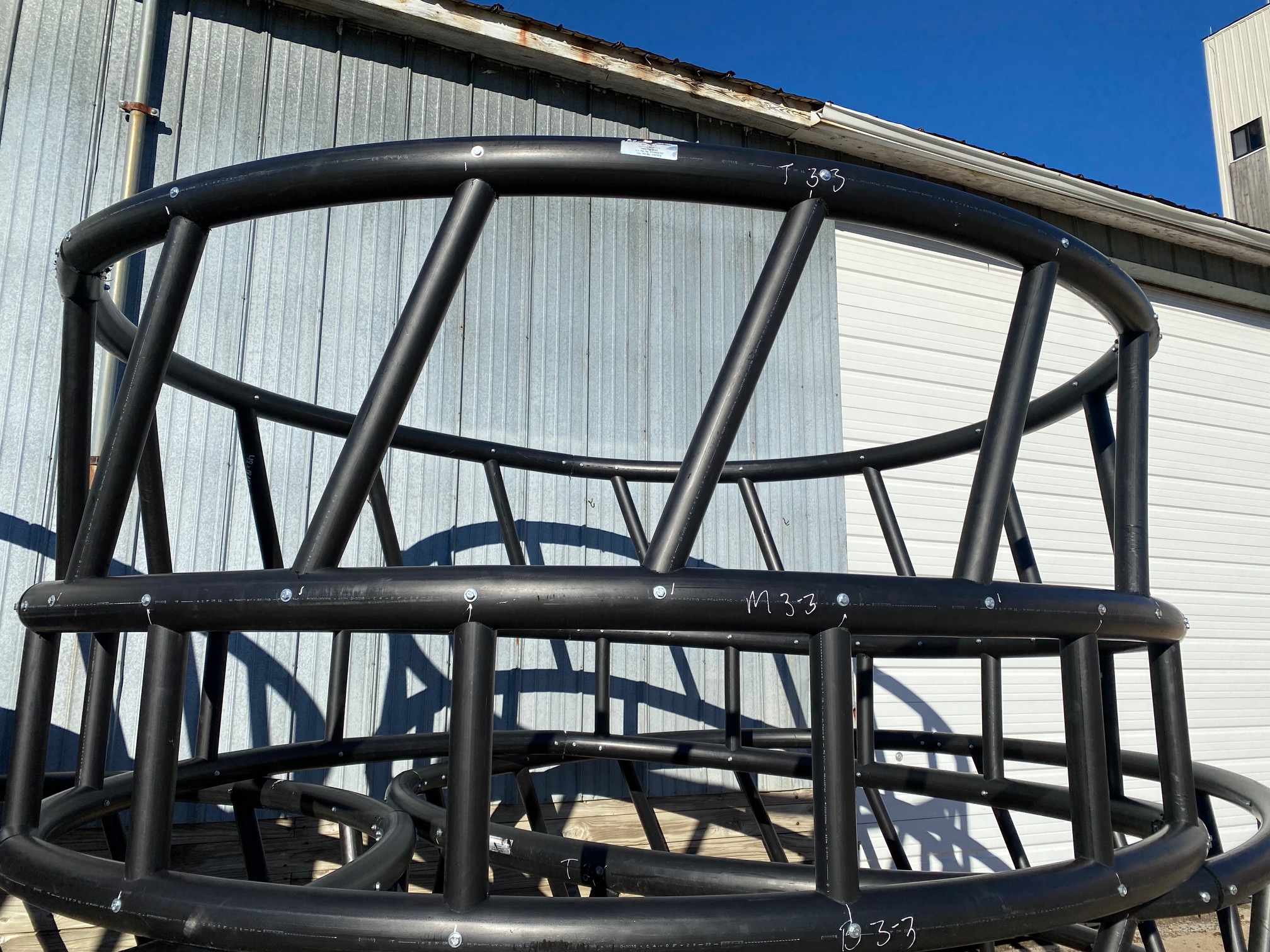

POLY COW/CALF BALE FEEDERS
Poly round bale feeders are built to last! These feeders are made out of polyethylene or gas line pipe! They are offered in all different sizes to fit what you are feeding! Each bale feeder is made up of 3 sections. We assemble them here at the shop, if you would like them unassembled we keep a few set aside.
The first number stands for the height of the bale feeder, offered in either 48” or 52” tall. 48” tall bale feeders have 20” skirting. 52” tall bale feeders have 24” skirting.
The next number stands for the width between the slant bars for different head spacing’s. Offered in either 12”, 15” or 18”. Easy way to tell what you have is to count the number of slants within 1/3 sections of the feeder.
12” has 7 slants
15” has 6 slants
18” has 5 slants

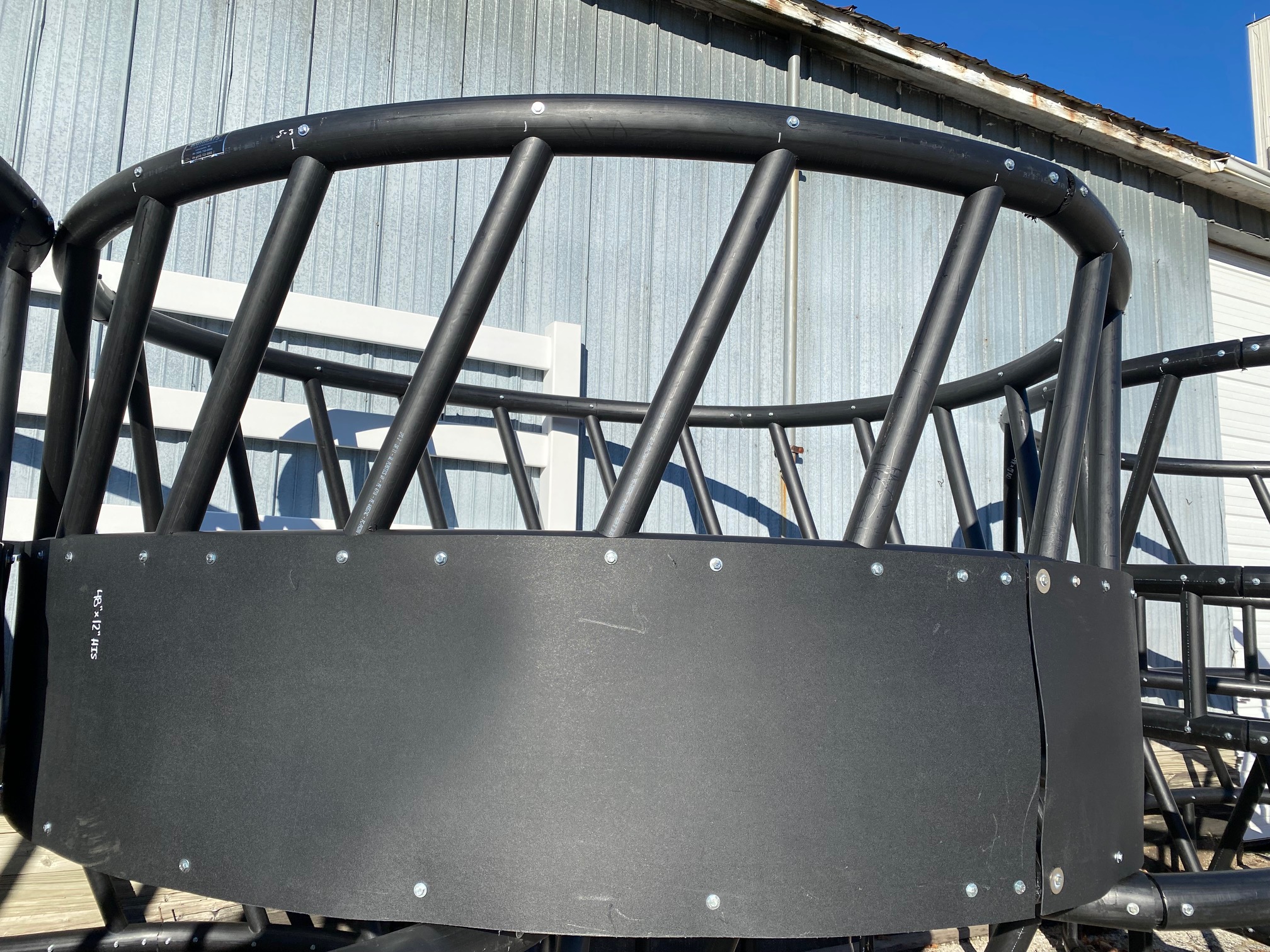

High impact sheeting serves as a hay saver on the bale feeders. The “NO” stands for no sheeting on the bale feeder. The “HIS” stands for high impact sheeting which can be added onto the feeder!
|
20” SKIRTING
|
24” SKIRTING
|

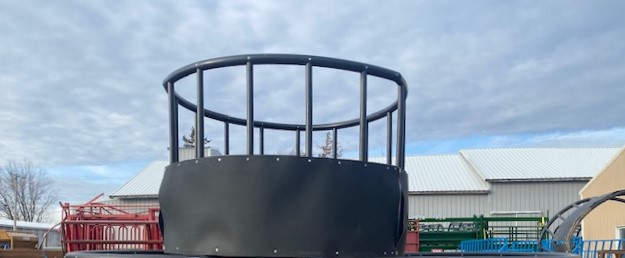

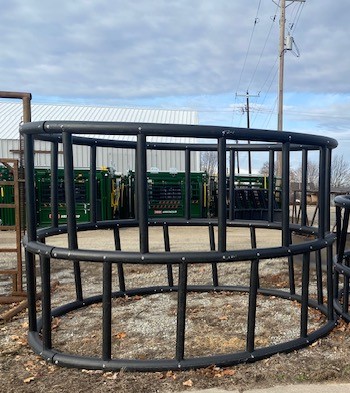

POLY HORSE BALE FEEDER
Poly round bale feeders are built to last! This feeder is made out of polyethylene or gas line pipe! These feeders are not only made for cows/calves, but made for horses as well!

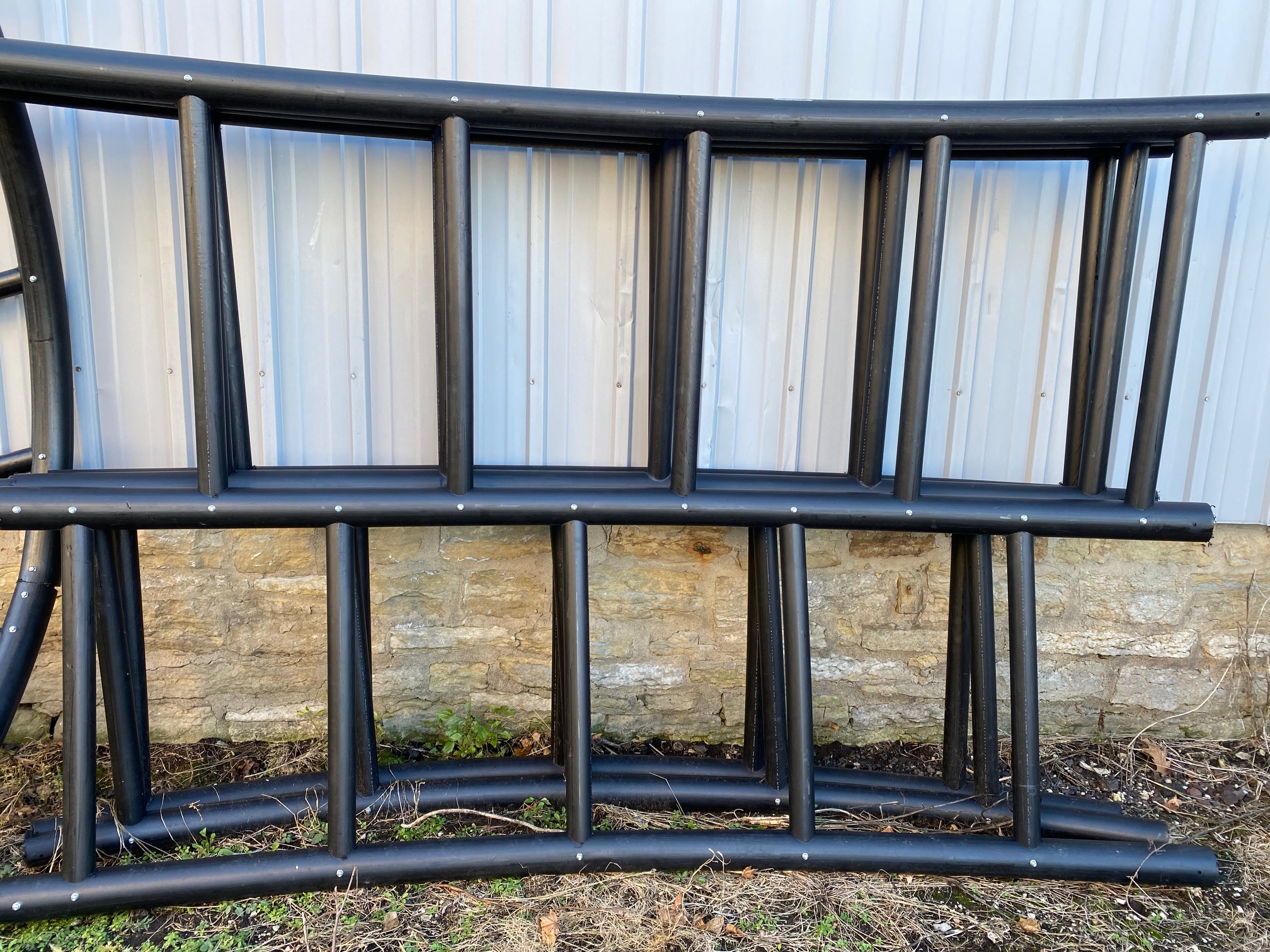

Similar to the cow/calf feeders, but this horse feeder is taller & has straight bars instead of slanted.
High impact sheeting serves as a hay saver on the bale feeders. The “NO” stands for no sheeting on the bale feeder. The “HIS” stands for high impact sheeting which can be added onto the feeder!
|
34” SKIRTING
|

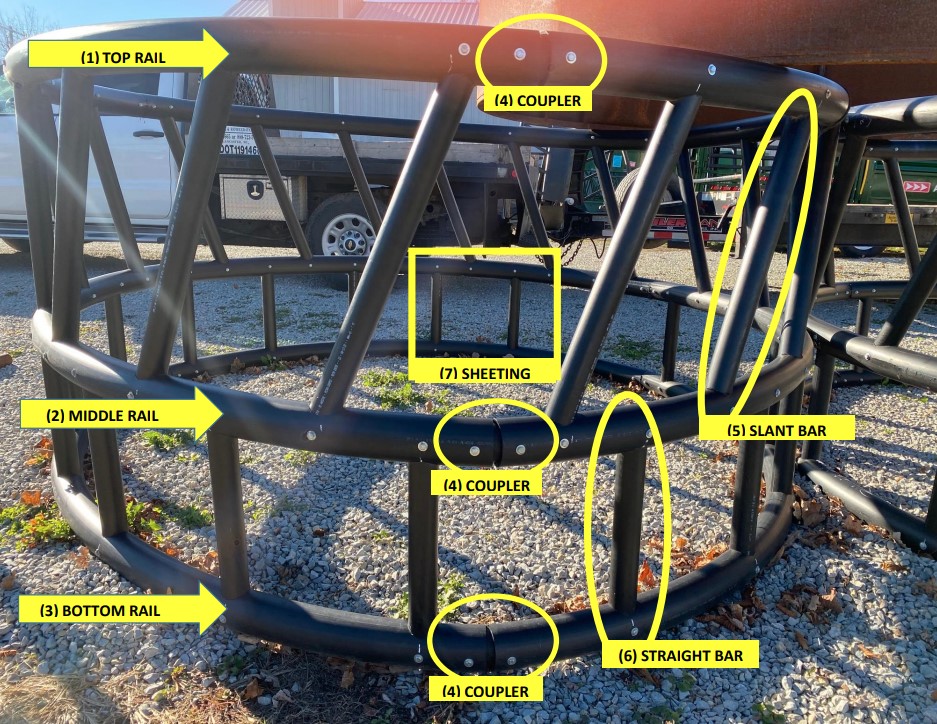

REPAIR PARTS
Over time these feeders do get a little wear and tear on them, whether it be from skid loader or cattle. We carry all replacement parts on hand!
- (1) Top Rail
- (2) Middle Rail
- (3) Bottom Rail
- (4) Couplers
- (5) Slant bars
- (6) Straight bars
- (7) Sheeting
- Nuts & bolts
